What Are the Dimensions of Rack Systems?

Rack systems provide space management and storage organization across a wide range of applications, from residential use and chain stores to logistics centers and industrial warehouses. Choosing the right rack system for a project directly affects not only the efficient use of available space but also the ability to maintain occupational safety standards, increase operational speed, and maximize product accessibility.

Since the requirements of each industry and space vary, systems manufactured in custom dimensions according to architectural project requirements are preferred alongside standard dimensions.

Metal Rack Systems

Metal rack systems are a fundamental component of commercial and industrial spaces thanks to their high load-bearing capacities, corrosion-resistant galvanized or electrostatic powder-coated finishes, and long service life. Used for organizing heavy and medium-weight loads, these systems can be dynamically scaled thanks to their modular beam and upright structures.

• Height: 180 cm to 600 cm (Can be extended with clip-in upright profiles according to requirements)
• Width (Beam Length): 90 cm to 120 cm
• Depth: 30 cm to 120 cm
• Important Detail: Shelf connection points are generally adjustable in 50 mm or 75 mm increments. This allows shelf spacing to be easily modified according to the dimensions of stored boxes or materials.

Wooden Rack Systems

Wooden rack systems are preferred in retail spaces, concept stores, offices, and living areas where visual appeal and architectural character are important. Manufactured from natural solid wood, MDF laminate, or veneer materials, these systems add warmth to interiors while creating an aesthetic and functional display area for medium-weight loads.

• Height: 90 cm to 240 cm
• Width: 60 cm to 120 cm
• Depth: 20 cm to 40 cm
• Important Detail: With flexible manufacturing capabilities, wooden systems can be designed in fully customized dimensions and supported with concealed connection components or decorative frames.

Wall-Mounted Rack Systems

Wall-mounted rack systems transform vertical surfaces into active storage areas in spaces where floor space is limited. They offer modular solutions for light and medium-duty storage requirements and provide space-saving benefits in offices, archive rooms, technical workshops, and commercial areas.

• Height: 60 cm to 240 cm (Depending on the length of the wall upright profile)
• Width: 30 cm to 120 cm
• Depth: 20 cm to 40 cm
• Important Detail: Thanks to double-slot upright profiles and bracket arms, shelf heights can be adjusted within seconds without requiring any hand tools.

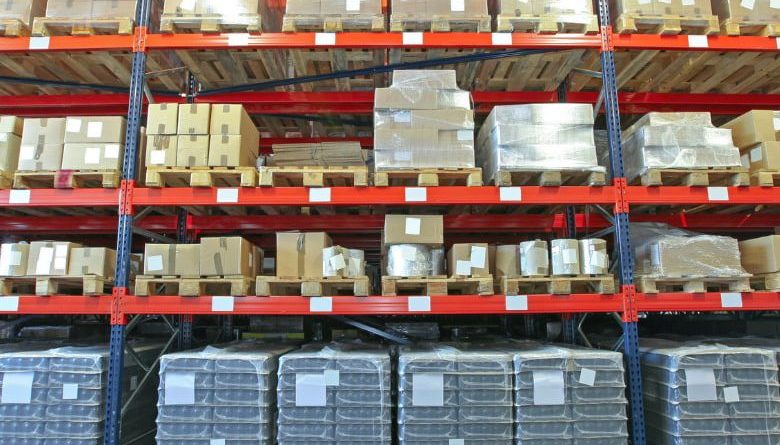

Industrial Warehouse Rack Systems

Developed for logistics warehouses, production facilities, and distribution centers, these heavy-duty systems are manufactured to comply with Euro pallet (80 × 120 cm) or industrial pallet (100 × 120 cm) standards. Different technical configurations are available, including Pallet Racking (Back-to-Back), Drive-In, and Mechanical Shuttle (Radio Shuttle) systems.

• Height: 300 cm to 1200 cm (Depending on warehouse ceiling height and forklift reach capacity)
• Width (Beam Span): 90 cm to 360 cm (Generally calculated to accommodate 2 or 3 pallets side by side)
• Depth: 60 cm to 120 cm (110 cm is a common choice for standard single-pallet depth)
• Important Detail: Systems are designed according to structural engineering calculations that take seismic loads and dynamic forklift impacts into consideration.

Supermarket Rack Systems

Designed to facilitate product display and stock accessibility in the retail sector, supermarket rack systems optimize store aisle layouts. They consist of different modules, including standard wall units, double-sided center gondola units, and end-of-aisle units.

• Height: 180 cm to 240 cm (Center gondolas generally use heights of 140–160 cm to maintain visibility)
• Width: 90 cm to 120 cm (Standard module widths)
• Depth: 30 cm to 60 cm (Progressive depth is used, with wider base shelves and narrower upper shelves)
• Important Detail: Systems can be customized according to product categories with a wide range of accessories, including front label channels, perforated back panels for baskets and hooks, and wire dividers.

Adjustable Rack Systems

These modular systems provide flexibility for e-commerce warehouses, spare-parts storage facilities, and archives where product inventory dimensions frequently change. Their boltless, clip-in structure allows for fast assembly and disassembly.

• Height: 90 cm to 240 cm
• Width: 60 cm to 120 cm
• Depth: 30 cm to 60 cm
• Important Detail: The clip-in slot structure allows shelf heights to be easily reconfigured by facility personnel according to changing inventory dimensions.

Recessed Rack Systems

Designed to make effective use of architectural niches and provide seamless surface integration, recessed rack systems are particularly suitable for specialized retail displays, hotel projects, and residential applications.

• Height: 60 cm to 240 cm
• Width: 30 cm to 120 cm
• Depth: 20 cm to 40 cm (Limited by the existing niche or drywall depth)
• Important Detail: These systems can be manufactured specifically for each space using concealed LED lighting channels and combinations of painted sheet metal and wood integrated into architectural details.

Open Rack Systems

These systems are particularly used in cold storage facilities, food businesses, sterile environments, and storage areas where air circulation is critical. They feature wire or grid shelving structures that help prevent dust accumulation and facilitate the distribution of fire suppression systems such as sprinklers to lower levels.

• Height: 90 cm to 240 cm
• Width: 60 cm to 120 cm
• Depth: 30 cm to 60 cm
• Important Detail: Stainless steel or chrome-plated options provide corrosion resistance in humid environments and areas requiring high hygiene standards.

Book Racks

Designed for libraries, educational institutions, bookstores, and archive rooms, these racks are structurally calculated to support heavy paper loads without excessive deflection or sagging.

• Height: 90 cm to 240 cm
• Width: 60 cm to 120 cm
• Depth: 20 cm to 40 cm (A depth of 25–30 cm is ideal for standard book sizes)
• Important Detail: Reinforcement and folded profiles added to the center sections of shelf panels help prevent sagging under long-term heavy book loads.

Steel Rack Systems

Steel rack systems provide economical and long-lasting solutions for storing light and medium-weight loads, including Mini-Rack and boltless shelving systems. Both traditional bolted configurations and new-generation boltless, modular assembly options are available.

• Height: 180 cm to 600 cm
• Width: 90 cm to 180 cm
• Depth: 30 cm to 120 cm
• Important Detail: In areas requiring high-density storage, these systems can be converted into multi-level steel rack structures by integrating platforms and walkways, creating mezzanine storage systems.
